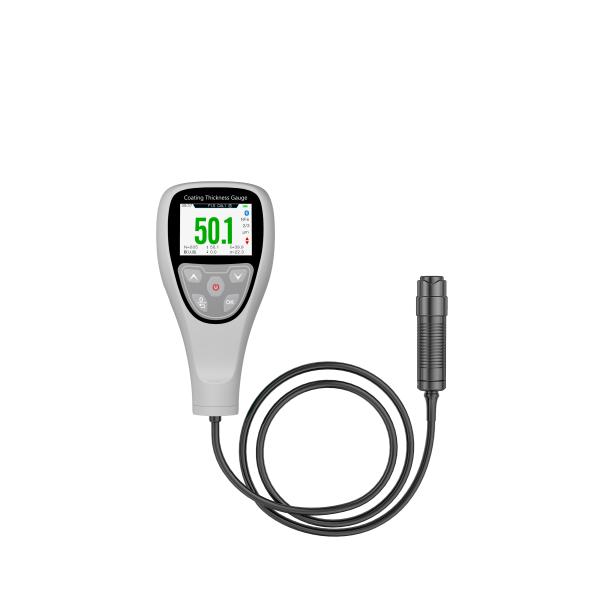

LY-982 coating thickness gauge can non destructively measure the thickness of non-magnetic coatings (e.g. aluminium, chrome, copper, enamel, rubber, paint, etc.) on magnetic metel materials (e.g. steel, iron, alloy, hard magnetic steel, etc.) and the thickness of non-conductive coatings (e.g. enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (e.g. copper, aluminium, zinc, tin, etc.)
1. Features
* Spring-guided probe with ultra-wear-resistant alloy tip ensures consistent contact pressure and stable measurement accuracy even on hard or rough surfaces, with a durability exceeding 500,000 measurements.
* High speed: 0.3 seconds per measurement.
* High accuracy and stability, capable of measuring ultra-thin coatings (1-5 μm).
* Wide measurement range with high resolution.
* Light-contact measurement achieves reliable precision.
* Automatic substrate recognition(Fe/ NFe).
* Split-type design, facilitating measurements in narrow areas.
*Four display modes: Readings Only, Readings& Statistics, Readings& Bar Graph, Readings& Run Chart.
* Statistical functions: Average (x̄), Max/Min, Standard Deviation (σ), Count (N).
* Four calibration modes: Zero Calibration, One Point Calibration, Two Point Calibration, Five Point Calibration.
* HD color screen with auto-rotation for multi-angle viewing.
* Supports USB connection to PCs for data acquisition and automated report generation, facilitating efficient corporate data management.
* Large storage capacity: 16 groups, 100 data points per group (total 1,600).
* Upper/lower limit alarms.
2. Technical parameters
* Display: 320×240 HD color LCD
* Measurement Range: 0–1500 μm (Fe/NFe), Optional:0–3000 μm (Fe/NFe)
Resolution: 0.1 μm (0–99.9 μm), 1 μm (100–3000 μm)
* Accuracy: 0–1500μm:±2%H +1μm, 1500–3000μm: ±3%H +1.5μm
* Minimum Substrate Thickness: 0.3 mm
* Minimum Curvature Radius: F:凸 1.5mm N:凸 3mm
* Measurement Modes: Single/Continuous
* Units: μm/mil
* Power Supply: 2×1.5V AA batteries or USB
* Battery Life: 15 hours (continuous use)
* Operating Conditions: -10°C to 50°C, <80% RH
* Dimensions: 134×67×38 mm
* Weight: ~80 g (excluding batteries)
3.Package list
* Main Unit ×1
* Fe Calibration Block ×1
* NFe Calibration Block ×1
* AA Batteries ×2 (excluded for air transport)
* User Manual ×1
* Warranty Card ×1
* Carrying Case ×1
* USB Cable ×1
* Calibration Foils (50, 100, 250, 500, 1000 μm) ×1 set
Note: For the 0-3000 μm measurement range, the instrument is supplied with an additional 2000 μm calibration Foil
